10Gbps MiniSFF LC Transceiver (10Km)
Description
10Gbps MiniSFF LC Transceiver (10Km)
FEATURES
● Surface mount I/O pins for high speed signal integrity
● All metal body, screw mount
● Industrial Temp range, vibration tolerant design
● 2-Fiber MiniSFF LC Transceiver
● 1310 DFB transmitter,PIN photo-detector Receiver
● Distance up to 10 km
● SFF-8472 Digital Diagnostic Function
● Single 3.3V Power Supply
● Operating Temperature
FTMF-131X-10D : 0℃~+70℃
FTMF-131X-10DI :-40℃~+85℃
APPLICATIONS
● 10GBASE-LR/LW 10G Ethernet

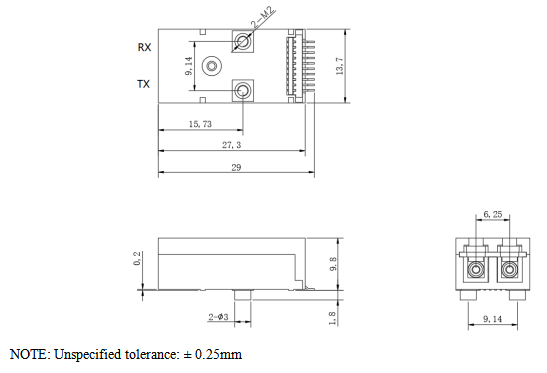

Outline Specification

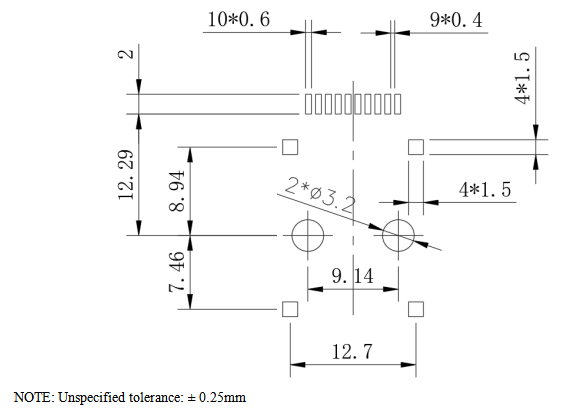

Recommended PCB Layout
Ordering Information
|
P/No. |
Package |
Bit Rate (Gb/s) |
Dist. (km) |
Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Volt. (V) |
Temp. (℃) |
DDM |
|
FTMF-131X-10D |
LC |
10.3125 |
10 |
1310 |
-8.2 to +0.5 |
-14.4 |
3.3 |
0 ~70 |
YES |
|
FTMF-131X-10DI |
LC |
10.3125 |
10 |
1310 |
-8.2 to +0.5 |
-14.4 |
3.3 |
-40 ~85 |
YES |
注：本产品有全国产化型号可选
本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
