标准光模块
18GHz DWDM 光模块
Description
18GHz DWDM 光模块
Features
● Low noise, use coaxial optical device with TEC
● Support ITU C Band
● Wide operating frequency from 10MHz to 21GHz
● APC&ATC functions
● Flat frequency response
● High dynamic range
● Excellent EMI/EMC design, CE certification
Applications
● Antenna remoting
● Secure communication
● Delay line
● Distributed antenna system
● Wideband wireless communication
● OFDM fiber transmission

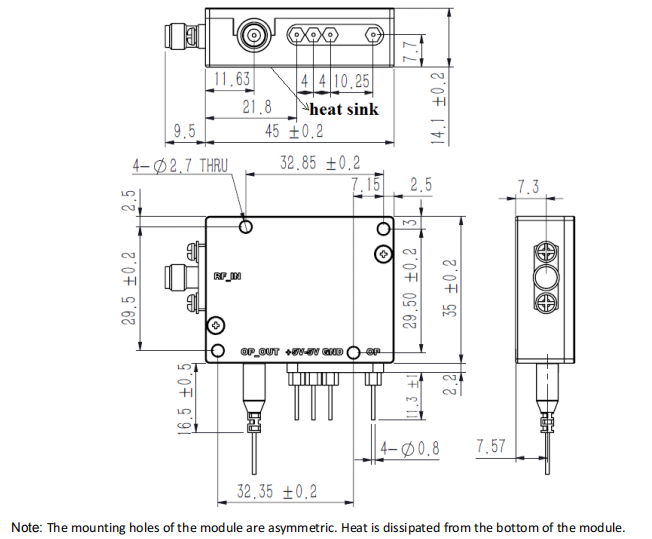

Mechanical (unit: mm)

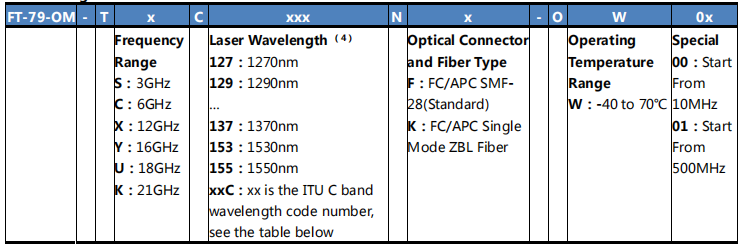

Ordering Information
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
