标准光模块
2X10 SFF BIDI SM 光模块（TX1310FP/ RX1550）
Description
2X10 SFF BIDI SM 光模块（TX1310FP/ RX1550）
FEATURES
● Single 3.3 Volt DC supply
● 2x10 SFF BIDI Package Outline
● SC connector
● Differential LVPECL/CML inputs
● Differential CML outputs
● Distance up to 20 km
● LVTTL Signal Detect output
● Operating case temperature: -40 ℃to 85℃
● Class 1 laser product complies with EN 60825-1
● RoHs Compliance
APPLICATIONS
● SONET/SDH Equipment Interconnect
● Gigabit Ethernet 1.25 Gb/s Links

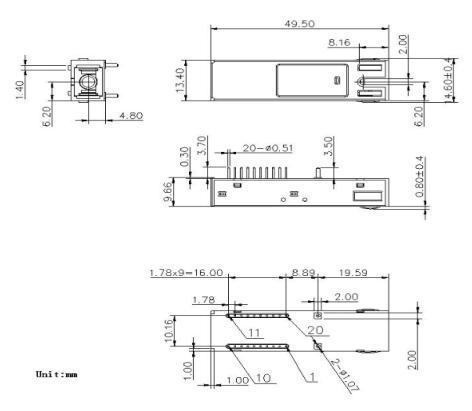

PACKAGE OUTLINE
Order Information
|
P/No. |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power(dBm) |
RX Sens(dBm) |
DDM |
Temp.(℃) |
|
FTBF-B1312-20DI |
SC |
1250 |
20 |
TX1310FP/ RX1550 |
3.3 |
-8 to 0 |
-23 |
YES |
-40~85 |
|
FTBF-B1512-20DI |
SC |
1250 |
20 |
TX1550DFB/RX1310 |
3.3 |
-8 to 0 |
-23 |
YES |
-40~85 |
注：本产品有全国产化型号可选
本产品为FTBF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
