2.5G 2X5 SFF Transceiver Module
Description
2.5G 2X5 SFF Transceiver Module
Product Description
F-tone Networks’s FTAF-8524-02xx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 3.1Gbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, Digital Video and other Fibre Channel applications.
Product Features
● VCSEL Laser Diode Transmitter
● Distance up to 300m at MM Fiber
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Input , Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Fiber Channel
● Digital Video system
● Other optic link

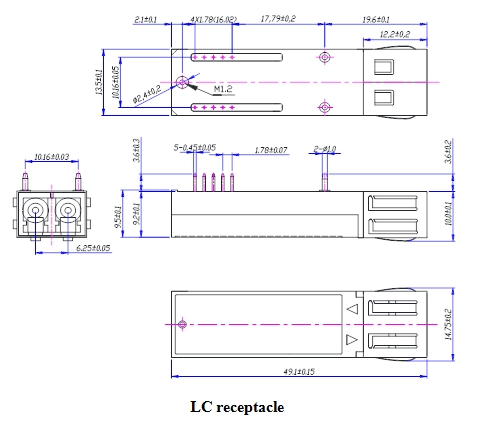

Module Outline Drawing
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTAF-8524-02xx |
MM |
850(VCSEL) |
0.3 |
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
