3.125Gbps CWDM SFP+ Transceiver
Description
3.125Gbps CWDM SFP+ Transceiver
FEATURES
● 18 Wavelength CWDM Cooled DML Transmitter
● Single 3.3V Power Supply
● Industry Standard SFP+ Package
● SMF links up to 40km
● Digital diagnostic monitor compatible with SFF-8472
● Compliant with SFP MSA
● Receiver Loss of Signal Output
● -40 to 85℃ Operation
APPLICATIONS
● CWDM optic fiber transmission system

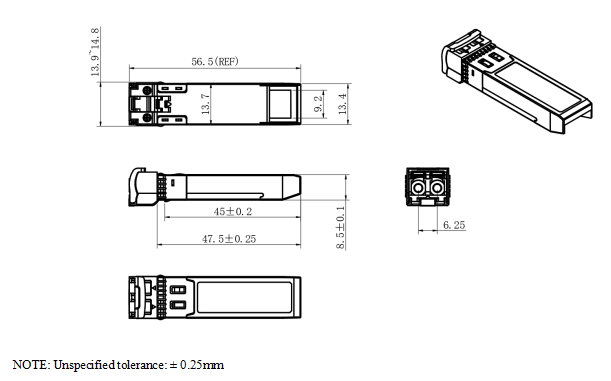

Mechanical Specifications (Unit: mm)
Ordering Information
|
P/No. |
Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Package |
Bit Rate (Mb/s) |
Volt. (V) |
Temp. (℃) |
|
FTCS-C2731-40DI |
1270CWDM |
-3 to +2
|
-23
|
LC |
3125 |
3.3 |
-40 ~85 |
|
FTCS-C2931-40DI |
1290CWDM |
||||||
|
FTCS-C3131-40DI |
1310CWDM |
||||||
|
FTCS-C3331-40DI |
1330CWDM |
||||||
|
FTCS-C3531-40DI |
1350CWDM |
||||||
|
FTCS-C3731-40DI |
1370CWDM |
||||||
|
FTCS-C3931-40DI |
1390CWDM |
||||||
|
FTCS-C4131-40DI |
1410CWDM |
||||||
|
FTCS-C4331-40DI |
1430CWDM |
||||||
|
FTCS-C4531-40DI |
1450CWDM |
||||||
|
FTCS-C4731-40DI |
1470CWDM |
||||||
|
FTCS-C4931-40DI |
1490CWDM |
||||||
|
FTCS-C5131-40DI |
1510CWDM |
||||||
|
FTCS-C5331-40DI |
1530CWDM |
||||||
|
FTCS-C5531-40DI |
1550CWDM |
||||||
|
FTCS-C5731-40DI |
1570CWDM |
||||||
|
FTCS-C5931-40DI |
1590CWDM |
||||||
|
FTCS-C6131-40DI |
1610CWDM |
注：本产品有全国产化型号可选
本产品为SFP+ CWDM系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
