40Gb/s QSFP+ Parallel Single Mode(2KM) to 8 x LC Connector Breakout Active Optical Cable (FTCQ-4X-PSMIR4-8LC-xxx)

0.0/5 rating (0 votes)

Description

Description
QSFP PSM TO 8xLC Breakout AOC are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and 40GbE PSM4. QSFP PSM TO 8xLC Breakout AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at typical rate of 10.3125Gb/s, providing an aggregated rate of 41.25Gb/s. These breakout cables connect to a 40G QSFP+ port of a switch on one end and to four 10G SFP+ Transceivers of a switch on the other end.

Features
● Full duplex 4 channel 1310nm parallel active optical cable
● Transmission data rate up to 11.3Gbit/s per channel
● SFF-8436 QSFP+ compliant
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 4 channels 1310nm FP array
● 4 channels PIN photo detector array
● Maximum link length of 2km on G652 single mode fiber (SMF)8x LC connector(APC)
● Maximum power consumption 3.5W
● Housing isolated from connector ground
● 3.3V power supply voltage
● RoHS 6 compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃

Applications
● Infiniband Connectivity SDR/DDR/QDR
● 10/40 Gigabit Ethernet
● 2/4/8 Gbps Fiber Channel
● Data Centers and Storage Arrays

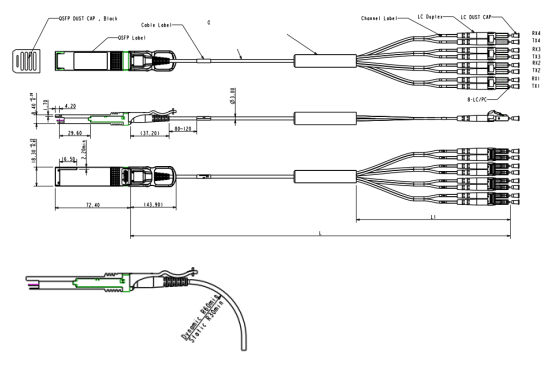

Mechanical Dimensions

Ordering information

Part Number	Product Description
FTCQ-4X-PSMIR4-8LC-xxx	xxx=different cable lengths on G652 single mode fiber (SMF),0ºC ~ +70ºC
FTCQ-4X-PSMIR4-8LC-xxxI	xxx=different cable lengths on G652 single mode fiber (SMF),-40ºC ~ +85ºC

xx(x)	Cable Length on G652 single mode fiber (SMF)
03	003=3m
05	005=5m
10	010=10m
20	020=20m
50	050=50m
100	100=100m
1000	1000=1km
2000	2000=2km

本产品为25G~400G高速光模块系列，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
