40GBASE-LR4 10kM QSFP+ Optical Receiver (FTCQ-4X-LR4Rxx)
Description
Description
The FTCQ-4X-LR4Rxx is a 4x10G hot pluggable optical receiver. F-tone Networks technology enables an optical DeMUX with AAWG that delivers a 40Gbps data link in a compact QSFP footprint. The optical connectivity is based on SMF LC connectors. The Rx consists of 4 10Gbps CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-LR Receiver is designed for applications based on the QSFP MSA, IEEE 802.3ba, and 40GBASE-LR4 requirements of up to 10km reach.
Features
● Transmission data rate up to 11.2Gbps per channel
● QSFP+ MSA compliant
● Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
● High Sensitivity PIN-TIA with AAWG DEMUX.
● Up to 10km reach over standard single mode fiber
● Compliant with QDR/DDR Infiniband data rates
● Hot pluggable electrical interface
● Power consumption＜1.5W
● 3.3V power supply voltage
● RoHS 6 compliant（lead free）
● Operating case temperature -20°C to +85°C
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 40G Ethernet
● Infiniband QDR and DDR interconnects
● Client-side 40G Telecom connections

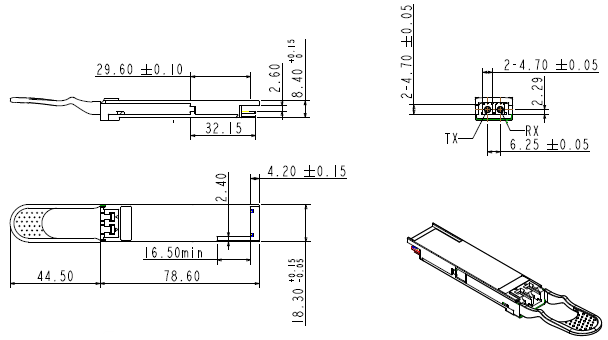

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCQ-4X-LR4R |
40Gb/s QSFP+ LR4,Pull-Tab,10 km on a standard single mode fiber(RX Only),0ºC ~ +70ºC |
|
FTCQ-4X-LR4RI |
40Gb/s QSFP+ LR4,Pull-Tab,10 km on a standard single mode fiber(RX Only),-40ºC ~ +85ºC |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
