6Gbps Single Mode Mini SFF BIDI Pigtail Transceiver
Description
6Gbps Single Mode Mini SFF BIDI Pigtail Transceiver
FEATURES
● Low Profile Design—8mm max. height
● Surface mount I/O pins for high speed signal integrity
● All metal body, screw mount
● Industrial Temp range, vibration tolerant design
● 1-Fiber Bi-Directional Mini SFF Pigtail Transceiver
● Super High Isolation Between Two Wavelengths
● Single 3.3V Power Supply
● Operating Temperature
Standard : 0℃~+70℃ (FTMF-B2760-02-xx / FTMF-B3360-02-xx)
Industrial: -40℃~+85℃ (FTMF-B2760-02I-xx / FTMF-B3360I-02-xx)
APPLICATIONS
● Rate Agile
● Fiber Channel Links

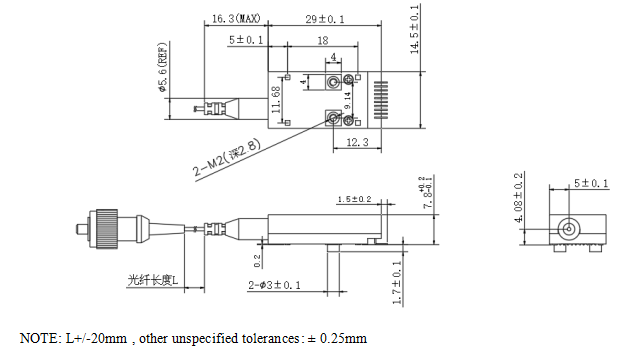

Outline Specification
Ordering Information
|
P/No. |
Package
|
Bit Rate (Gb/s) |
Dist. (km) |
Wavelength (nm) |
Volt. (V) |
TX Power (dBm) |
RX Sens (dBm) |
Temp. (℃) |
|
FTMF-B2760-02-xx |
FC Pigtail |
6 |
2 |
TX1270/RX1330 |
3.3 |
-6 to 0 |
-14 |
0 ~70 |
|
FTMF-B3360-02-xx |
TX1330/RX1270 |
|||||||
|
FTMF-B2760-02I-xx |
FC Pigtail |
6 |
2 |
TX1270/RX1330 |
3.3 |
-6 to 0 |
-14 |
-40 ~85 |
|
FTMF-B3360-02I-xx |
TX1330/RX1270 |
备注：接口可选；“xx”表示尾纤长度，尾纤长度可定制。
注：本产品有全国产化型号可选
本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
