Description
The F-tone Networks Technologies FTQD-2H-SR4-QD-Oxxx is an Eight-Channels, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x100 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane can operates at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses a 24 fiber MTP (MPO) connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● 8 channels full-duplex transceiver modules
● Transmission data rate up to 26Gbps per channel
● Compliant with QSFP-DD MSA V5.0 and CMIS V4.0
● 8 channels 850nm VCSEL array
● 8 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Support CDR bypass
● Low power consumption <4W
● Hot Pluggable QSFP DD form factor
● Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
● MPO24 connector receptacle
● Built-in digital diagnostic functions
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3bm 100GBASE SR4

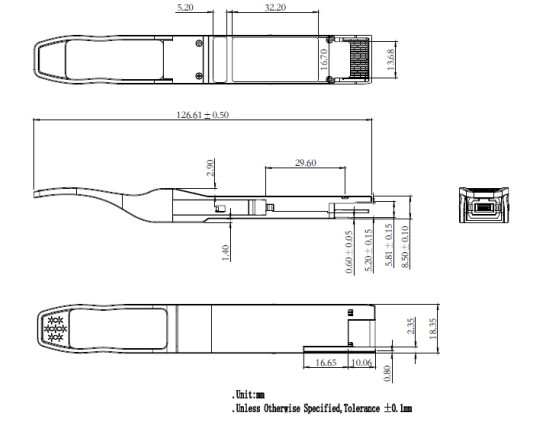

Mechanical Dimensions

Ordering Information

本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
