400G QSFP56 DD DR4 2km Optical Transceiver Module
Description
Description
The F-tone Networks FTQD-4H-DR4xx is a transceiver module designed for 2km optical communication applications, and it is compliant to QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 425 Gigabit signal is carried over four parallel lanes by one wavelength per lane. This module can convert 8-channel 53.125 Gbit/s electrical data to 4 parallel channels of optical signals, each supporting106.25 Gbit/s data transmission. Reversely, it can convert 4-channel 106.25 Gbit/s optical signals to 8-channel electrical output data on the receiver side. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Features
● QSFP-DD MSA rev 5.1 and CMIS rev4p0 compliant
● Compliant to 802.3bs 400GBASE-DR4
● 8x53.125Gbit/s PAM4 electrical interface(400GAUI-8)
● 4x106.25Gbps(53.125GBd PAM4)Optics architecture
● Power consumption <10W
● Maximum link length of 2km G.652 SMF with KP-FEC
● MPO receptacles
● Built-in digital diagnostic functions
● 3.3V power supply voltage
● RoHS compliant(lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3bs 400GBASE-DR4
● Data center network

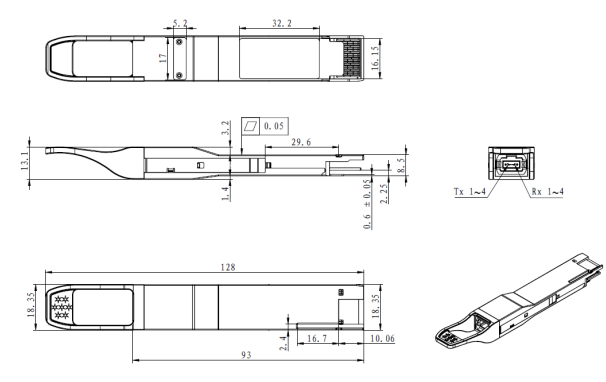

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTQD-4H-DR4 |
QSFP DD, 400GBASE-DR4, 2km on Single mode Fiber (SMF),with DSP Power consumption <10W, MPO-12 connector,0~+70℃ |
|
FTQD-4H-DR4I |
QSFP DD, 400GBASE-DR4, 2km on Single mode Fiber (SMF),with DSP Power consumption <10W, MPO-12 connector,-40~+85℃ |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
