光纤起偏器
Description
In-line Polarizer (ILP-13/15nm)
Features:
● Low insertion loss
● High extinction ratioHigh Return Loss
● Excellent environmental stability
and reliability
Applications:
● Fiber Laser
● Fiber Sensor
● Communication System
● Test Instrumentations
● Polarization maintaining optical system
Compliance:
● Telcordia GR-1209-CORE
● Telcordia GR-1221-CORE
● RoHS

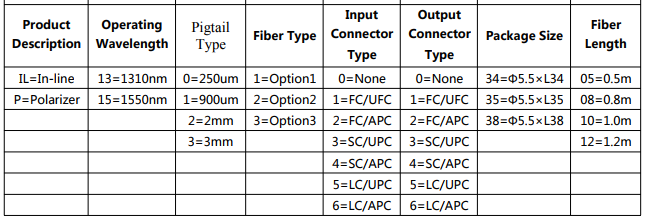

Product Ordering information:FT-45-ILP
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
