兼容安华高HFBR-5911ALZ

Product Description
F-tone Networks’s FTBR-59L1ALZ_FTBR-5911ALZseries of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, Digital Video and other Fibre Channel applications.

Product Features
● VCSEL Laser Diode Transmitter
● Distance up to 300m at MM Fiber
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Input , Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● Fiber Channel
● Digital Video system
● Other optic link

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It’s not implied that the product would function above the recommended operating environment, it’s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)

Table 1--- Absolute Maximum Conditions

Table 2--- Recommended Operating Environment and Electrical Characteristics

Note
1.standard level
2.industrial level
3.Not recommended wave soldering

Electrical Parameters
Table 4--- Transceiver Electrical Characteristics
(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

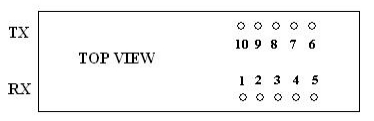

Pin Definitions

Table 5— Pin Function Definitions

Note1：LVTTL-Normal optical input levels to the receiver result in logic “0 or 1” output,pull-up 10kΩresistor.
Note2：The is an input that is used to shut down the transmitter optical output. Transmitter on in logic “0”.

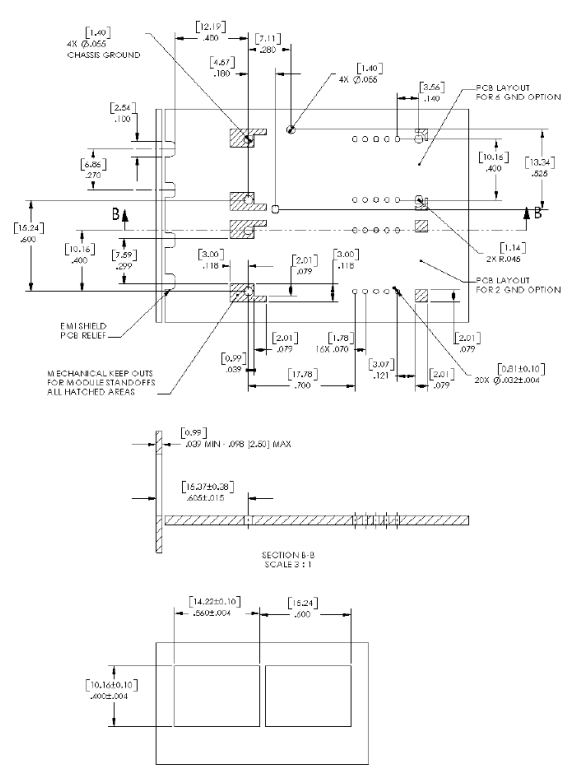

Recommended Board Layout Hole Pattern

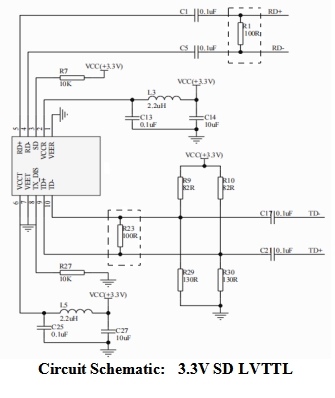

Recommended Circuit Schematic

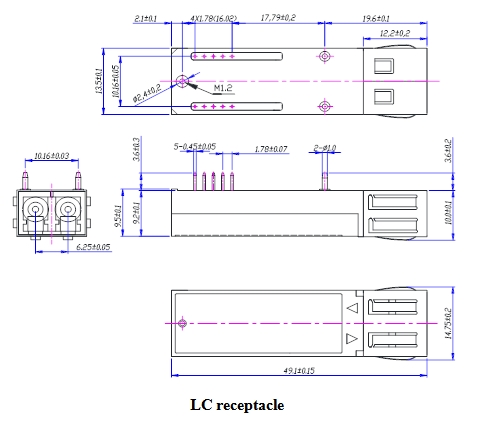

Module Outline Drawing

Order Information
