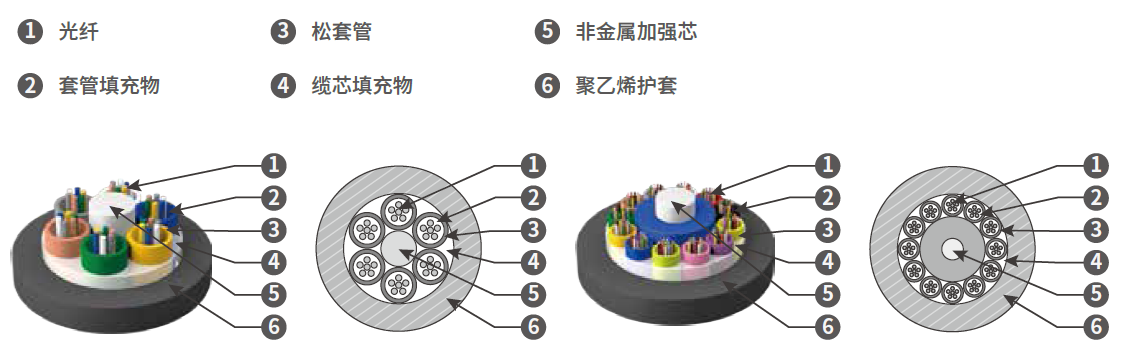

FT-AE-OCTN 光缆的结构是将 250µm 光纤套入高模量材料制成的松套管中,松套管内填充防水化合物。缆芯的中心是一根玻璃纤维增强塑料(FRP),松套管(和填充绳)围绕中心加强芯绞合成紧凑和圆形的缆芯,缆芯内的缝隙充以阻水填充物。缆芯外挤上一层聚乙烯护套成缆。
产品标准
北亿纤通FT-AE-OCTN 光缆符合YD/T 901 和IEC 60794-1 标准。
产品特点
● 具有很好的机械性能和温度特性
● 松套管材料本身具有良好的耐水解性能和较高的强度
● 管内充以特种油膏,对光纤进行了关键性保护
● 良好的抗压性和柔软性
● 采用下列措施来确保光缆的防水性能:
- 单根非金属中心加强芯
- 松套管内填充特种防水化合物
- 完全缆芯填充
结构参数
光缆型号 (以2纤递增) |
光纤数 |
套管数 |
填充绳数 |
参考光缆重量 (kg/km) |
允许拉伸力 长期/短期 |
允许压扁力 长期/短期 |
弯曲半径 静态/动态 |
FT-AE-OCTN002-006 |
2~6 |
1 |
5 |
86 |
400/1000 |
300/1000 |
12.5D/25D |
FT-AE-OCTN008-012 |
8~12 |
2 |
4 |
86 |
|||
FT-AE-OCTN014-018 |
14~18 |
3 |
3 |
86 |
|||
FT-AE-OCTN020-024 |
20~24 |
4 |
2 |
86 |
|||
FT-AE-OCTN026-030 |
26~30 |
5 |
1 |
86 |
|||
FT-AE-OCTN032-036 |
32~36 |
6 |
0 |
86 |
|||
FT-AE-OCTN038-048 |
38~48 |
4 |
2 |
109 |
|||
FT-AE-OCTN050-060 |
50~60 |
5 |
1 |
109 |
|||
FT-AE-OCTN062-072 |
62~72 |
6 |
0 |
109 |
|||
FT-AE-OCTN002-006 |
2~6 |
1 |
6 |
98 |
600/1500 |
||
FT-AE-OCTN008-012 |
8~12 |
2 |
5 |
98 |
|||
FT-AE-OCTN014-018 |
14~18 |
3 |
4 |
98 |
|||
FT-AE-OCTN020-024 |
20~24 |
4 |
3 |
98 |
|||
FT-AE-OCTN026-030 |
26~30 |
5 |
2 |
98 |
|||
FT-AE-OCTN032-036 |
32~36 |
6 |
1 |
98 |
|||
FT-AE-OCTN038-042 |
38~42 |
7 |
0 |
98 |
|||
FT-AE-OCTN044-048 |
44~48 |
4 |
3 |
115 |
|||
FT-AE-OCTN050-060 |
50~60 |
5 |
2 |
115 |
|||
FT-AE-OCTN062-072 |
62~72 |
6 |
1 |
115 |
|||
FT-AE-OCTN002-006 |
2~6 |
1 |
7 |
119 |
1000/3000 |
||
FT-AE-OCTN008-012 |
8~12 |
2 |
6 |
119 |
|||
FT-AE-OCTN014-018 |
14~18 |
3 |
5 |
119 |
|||
FT-AE-OCTN020-024 |
20~24 |
4 |
4 |
119 |
|||
FT-AE-OCTN026-030 |
26~30 |
5 |
3 |
119 |
|||
FT-AE-OCTN032-036 |
32~36 |
6 |
2 |
119 |
|||
FT-AE-OCTN038-042 |
38~42 |
7 |
1 |
119 |
|||
FT-AE-OCTN044-048 |
44~48 |
8 |
0 |
119 |
|||
FT-AE-OCTN050-060 |
50~60 |
5 |
3 |
125 |
|||
FT-AE-OCTN062-072 |
62~72 |
6 |
2 |
125 |
|||
FT-AE-OCTN074-084 |
74~84 |
7 |
1 |
125 |
|||
FT-AE-OCTN086-096 |
86~96 |
8 |
0 |
125 |
|||
FT-AE-OCTN098-108 |
98~108 |
9 |
1 |
149 |
|||
FT-AE-OCTN110-120 |
110~120 |
10 |
0 |
149 |
|||
FT-AE-OCTN122-132 |
122~132 |
11 |
1 |
179 |
|||
FT-AE-OCTN134-144 |
134~144 |
12 |
0 |
179 |
储存、使用温度:-40℃至+70℃。
光学特性
光纤类型 |
衰减 (+20℃) |
带宽 |
数值孔径 |
光缆截止波长 |
||||
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
|||
G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
--- |
≤1260nm |
G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
--- |
≤1450nm |
50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
0.200±0.015 NA |
--- |
62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
0.275±0.015 NA |
--- |
适用:管道、架空
