标准光模块
QSFP+ 40G LR4 10km 光模块
Description
QSFP+ 40G LR4 10km 光模块
特征：
● 符合40G以太网IEEE 802.3ba 40GBASE LR4标准
● 非制冷4x10Gb/s CWDM发射机
● 通过单模光纤（SMF）的最大链路长度为10km
● 单个+3.3V电源
● 最大功耗3.5W
● 符合QSFP+MSA：SFF-8436和SFF-8679
● I2C接口与数字诊断监测
● 工况温度：-40°C~+85°C
应用：
● 数据中心主干
● 以太网交换机
● 高速服务器
● 高性能计算集群

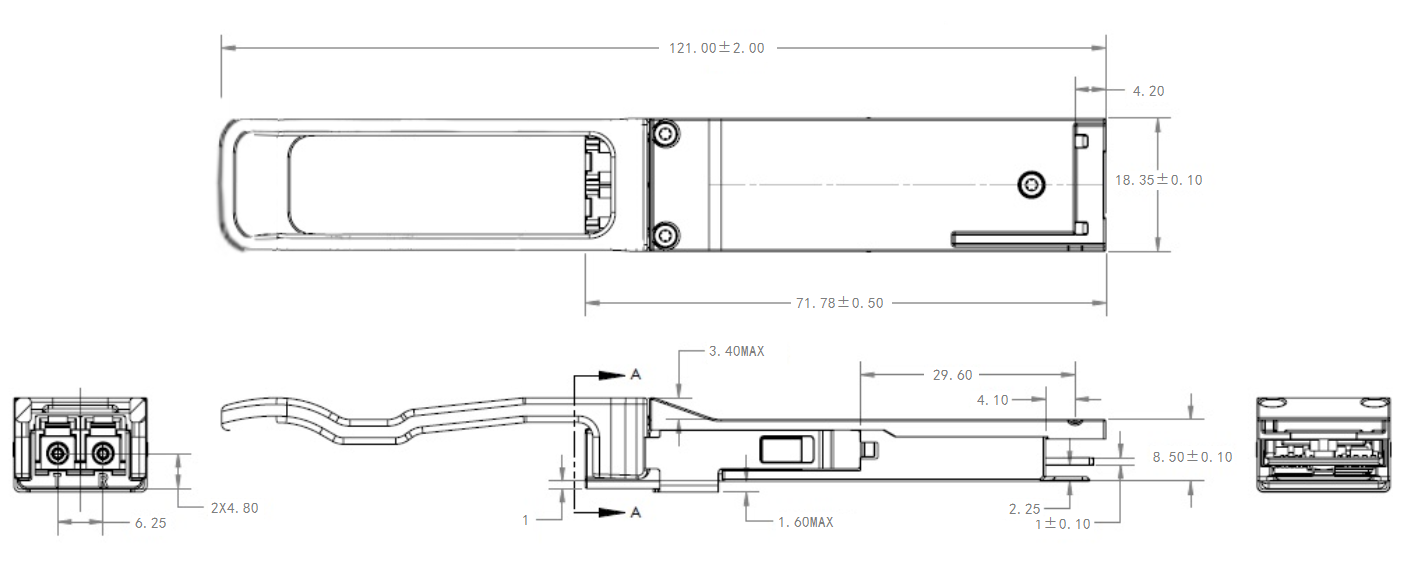

机械尺寸
订购信息
|
Part No. |
Bit Rate (each Lane) |
Laser |
Distance [note1] |
Fiber Type |
Connector |
Temp [note2] |
全国产 |
|
FTCQ-4X-LR4I-GC |
10.3125(Gbps) |
DFB |
10km |
SMF |
LC |
-40℃~+85℃ |
YES |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
