10G RJ Transceiver Module
Description
10G RJ Transceiver Module
Product Description
F-tone Networks’s FTRJ-xx1X-xxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 10Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provide the system designer with Telecom, Datacom, and other Fibre Channel applications.
Product Features
● VCSEL/DFB Laser Diode Transmitter
● Up to 0.3Km on 62.5/125μm MMF(300m links with OM3 MMF，82m links with OM2 MMF， 33m links with OM1 MMF)，Up to 20 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Inputs and Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● High-speed Storage Area Networks
● 10G Ethernetand
● Other optic links

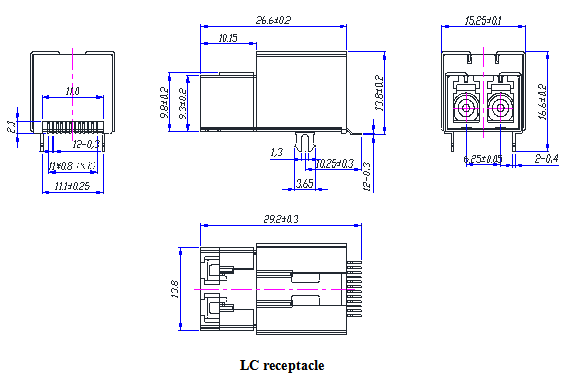

Module Outline Drawing
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTRJ-851X-02 |
MM |
850(VCSEL) |
0.3 |
|
FTRJ-131X-10 |
SM |
1310(DFB) |
10 |
|
FTRJ-131X-20 |
SM |
1310(DFB) |
20 |
|
FTRJ-851X-02I |
MM |
850(VCSEL) |
0.3 |
|
FTRJ-131X-10I |
SM |
1310(DFB) |
10 |
|
FTRJ-131X-20I |
SM |
1310(DFB) |
20 |
Note：
1. The suffix “M” denote MMF.
2.The suffix “-I” denote the industrial level.
本产品为FTRJ系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
